PROCESS EQUIPMENT

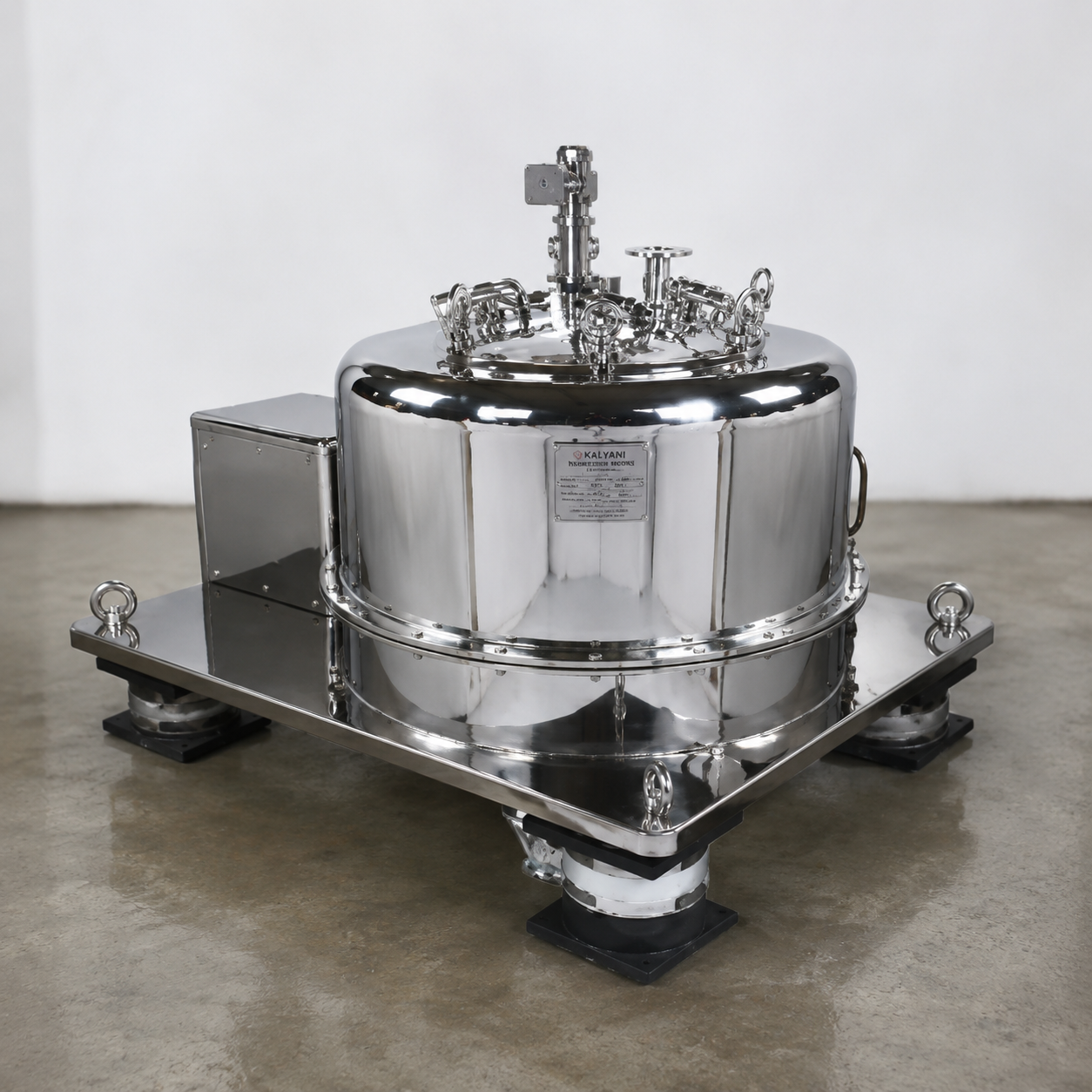

Bottom Discharge Type Centrifuge
Advanced bottom discharge centrifuge designed for efficient solid-liquid separation, low residual material and reliable process operation with options for automation.
REQUEST A QUOTE →
TECHNICAL DETAILS
Key Specifications
Material Discharge
Through Bottom
Suspension / Mounting
Inertia Plate with Anti-Vibration Mounts (4 Point Suspension)
Construction
cGMP Construction
Sizes
900 mm Dia to 1500 mm Dia
Usable Volume
200 Ltr to 900 Ltr per Batch
Basket Speed
500 rpm to 1500 rpm
Special Features
Large Central Opening, Low Residual Material
Material of Construction
SS, Carbon Steel, Hastelloy, Rubber Lined
FEATURES
Key Features
✓ Bottom Material Discharge
✓ cGMP Construction
✓ Large Central Opening
✓ Low Residual Material
✓ Complete CIP System
✓ Heel Removal System
✓ Process Automation Option
✓ Vibration Monitoring
✓ Zero Speed Interlock
